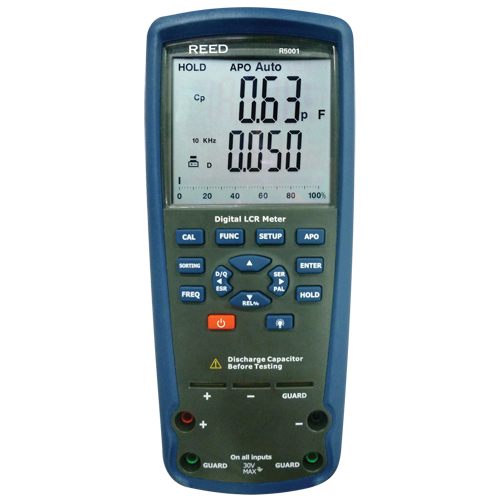

LCR Meter

Name: LCR Meter
Brand: Reed Instruments
SKU: IA854
Price: 329 CAD
Availability: InStock

Model: IA854

Mfr. No.:Manufacturer Model No.: R5001

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$329.00 / Each

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

Reed Instruments

Carrying Cases, Soft Case

Outside Depth: 2"
Outside Length: 9"
Outside Width: 4"

Model: HN416

Mfr. No.:Mfr. No.: CA-05A

$32.00 / Each

Ships in 1-2 days

Shipping times are based on information available at the time of order and are subject to change.

Reed Instruments

R8888 Deluxe Carrying Case, Hard Case

Outside Dimensions: 13 x 12 x 5.8" (330 x 310 x 148mm)

Model: IB742

Mfr. No.:Mfr. No.: R8888

$99.00 / Each

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

Hand Held/Bench Model: Hand Held
Test Frequencies: 100/120/1k Hz 10k Hz 100k Hz
Test Signal Level: 0.5V AC RMS typical
Power Supply: 6 x 1.5V AA batteries
Dimensions: 8-19/32 x 3-11/16" x 2-13/32"

Autoranging operation for AC impedance and DE resistance measurement
Auto LCR smart check and measurement
Series/Parallel modes
Ls/Lp/Cp with D/Q/Ø/ESR parameters
Support DCR mode 200 to 200MΩ
High accuracy with 4 or 5 terminal Kelvin measurement
Testing frequency is up to 10kHz and output frequency is up to 100kHz
Dual display with backlight
Data hold function
Low battery indication with auto power off
