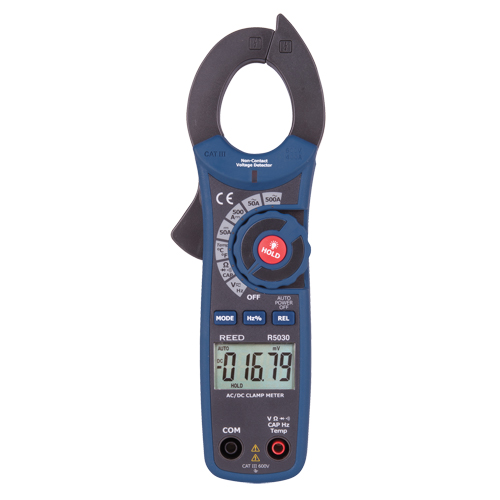

True RMS Clamp Meter, AC/DC Voltage, AC/DC Current

Name: True RMS Clamp Meter, AC/DC Voltage, AC/DC Current
Brand: Reed Instruments
SKU: IB685
Price: 189 CAD
Availability: InStock

Model: IB685

Mfr. No.:Manufacturer Model No.: R5030

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$189.00 / Each

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

Reed Instruments

Surface Thermocouple Probe, 11-1/4" " L

Measuring Range: -58 to 932°F (-50 to 500°C)
Ideal Applications: Laboratory, industrial, medical, HVAC/R and food service

Model: IB878

Mfr. No.:Mfr. No.: R2920

$89.00 / Each

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

Reed Instruments

Carrying Cases, Soft Case

Outside Depth: 2"
Outside Length: 7"
Outside Width: 3"

Model: HN413

Mfr. No.:Mfr. No.: CA-52A

$30.00 / Each

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.

Reed Instruments

Right-Angle Surface Probe, 13" " L

Measuring Range: -58 to 932°F (-50 to 500°C)
Ideal Applications: Laboratory, industrial, medical, HVAC/R and food service

Model: IB879

Mfr. No.:Mfr. No.: R2930

$99.00 / Each

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

Reed Instruments

Immersion Thermocouple Probe, 11-1/4" " L

Measuring Range: -58 to 1112°F (-50 to 600°C)
Ideal Applications: Laboratory, food service and industrial

Model: IB881

Mfr. No.:Mfr. No.: R2950

$89.00 / Each

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

Voltage Readings: AC/DC
Current Readings: AC/DC
AC/DC Current Range: 50.00, 500.0 A
Accuracy: AC: ±(2.8% rdg. +30 dgt.);DC: ±(2.5% rdg. +30 dgt.), ±(1.0% rdg. +30 dgt.), ±(0.1% rdg. +4 dgt.), ±(1.0% rdg. +4 dgt.), ±(0.5% rdg. +10 dgt.), ±(3.5% rdg. +10 dgt.)
AC Voltage Range: 500.00 mV, 5.0000, 50.000, 500.00, 750.0 V
DC Voltage Range: 500.00 mV, 5.0000, 50.000, 500.00, 1000.0 V
Resistance Range: 500.00 O, 5.000, 50.000, 500.00 kO, 5.0000, 50.000 MO
Frequency Range: 10.000 kHz
Capacitance Range: 500.00, 5000.0 nF, 50.00, 500.0 μF, 5.000 mF
Temperature Range: -100.0 to 1000.0 °C/-148.0 to 1832.0 °F

Measures AC/DC current, AC/DC voltage, resistance, capacitance, frequency, duty cycle, and temperature with a type K thermocouple probe
True RMS AC measurements
Non-contact AC voltage detector in clamp tip
Low battery indication and auto power-off
50,000 count LCD with backlight
Conforms to EN61010 Cat. III 600 V
Jaw Opening: 1.2" (30 mm)
Includes set of test leads, temperature probe, batteries, and soft carrying case
